Contact usHSP-5400

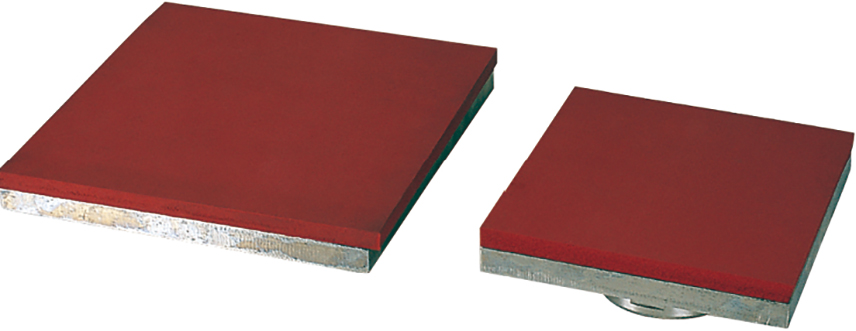

Maximum pressure is 300g/cm2?and pressure controller shows current pressure so that it is easy to set required pressure. This heat transfer press machine is driven by motor , it does not require air system. Lower pressure plate is set on plinth with index planser. so that the plinth helps to change lower pressure plate The electronic thermostat and solid state relay control the temperature difference rang minimum Upper pressure plate adopt with unti-static electricity Tefion sheet , so that it can be cleaned easily.
Specification
| Description | Flat Typ Sublimation | ||
| Model | HSP-5400 | ||
| Voltage | 3P220V | ||
| Rated Output | 1.92kw 1.1Kｗ | ||
| Rated Current | 6A 14A | ||
| Presser（MAX） | 300g/cm2 | ||
| Presser Type | Motor | ||
| Temperature（MAX） | 230℃ | ||
| Available size | 500×400mm | ||
| Dimension（W） | 517mm | ||
| Dimension（D） | 930mm | ||
| Dimension（H） | 709mm | ||
| Weight | 106kg | ||
